Cross beam

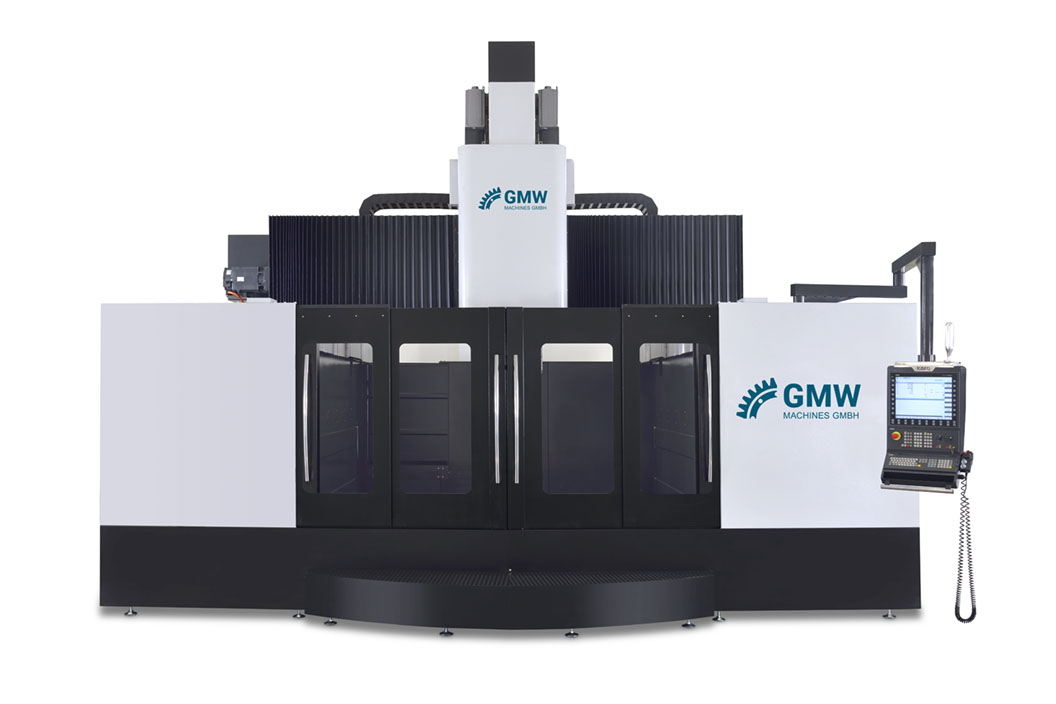

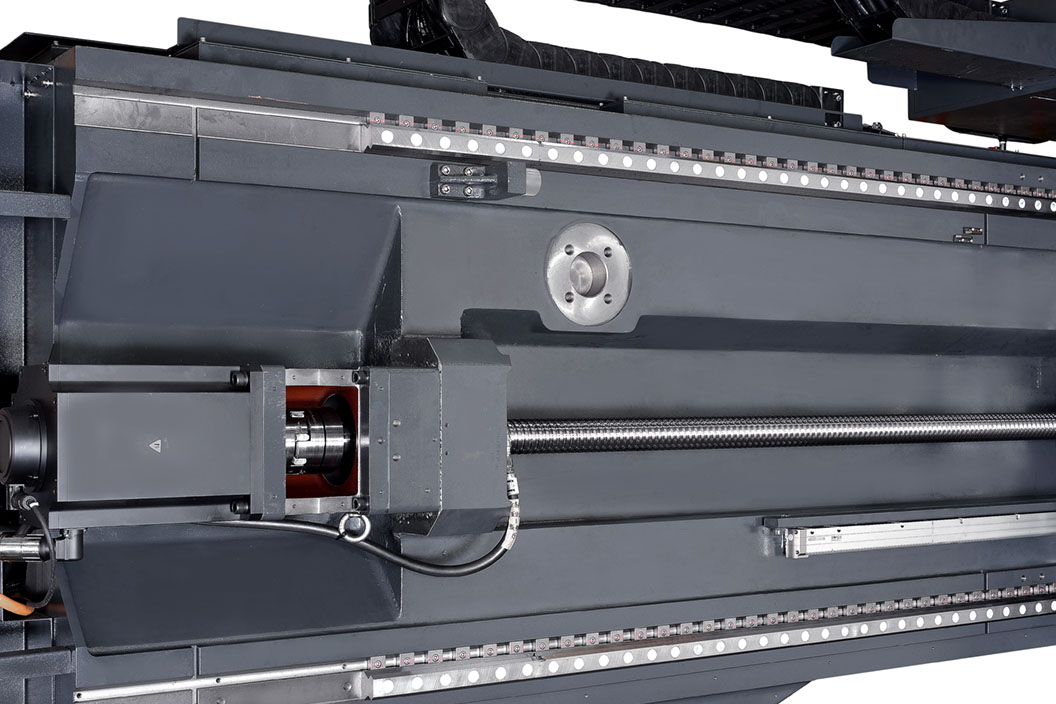

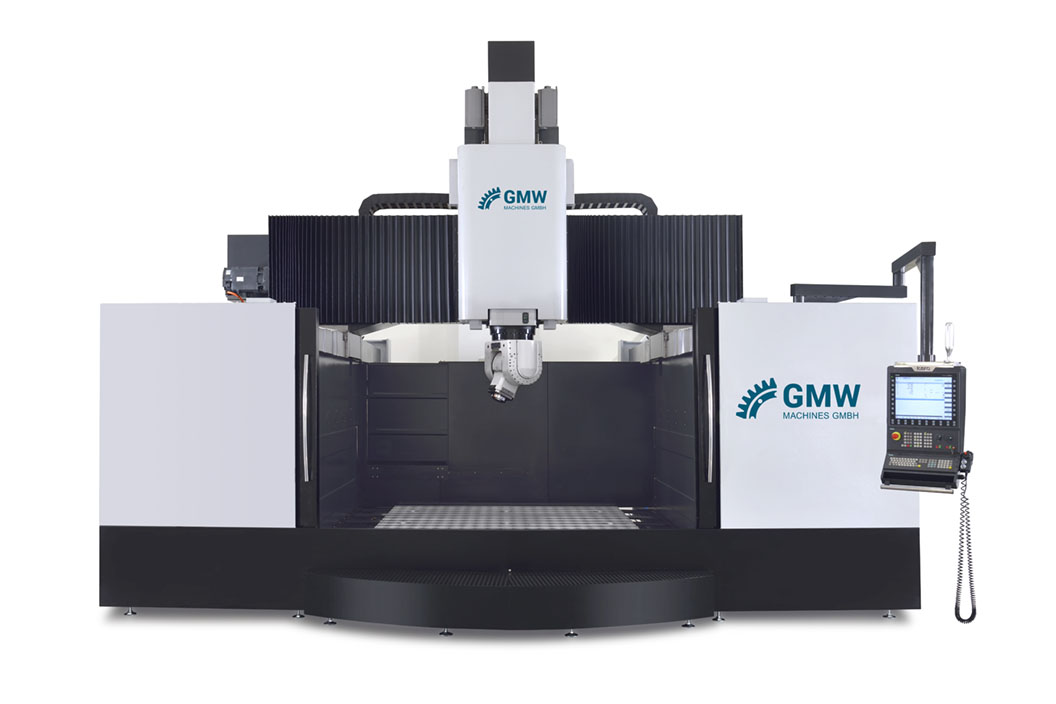

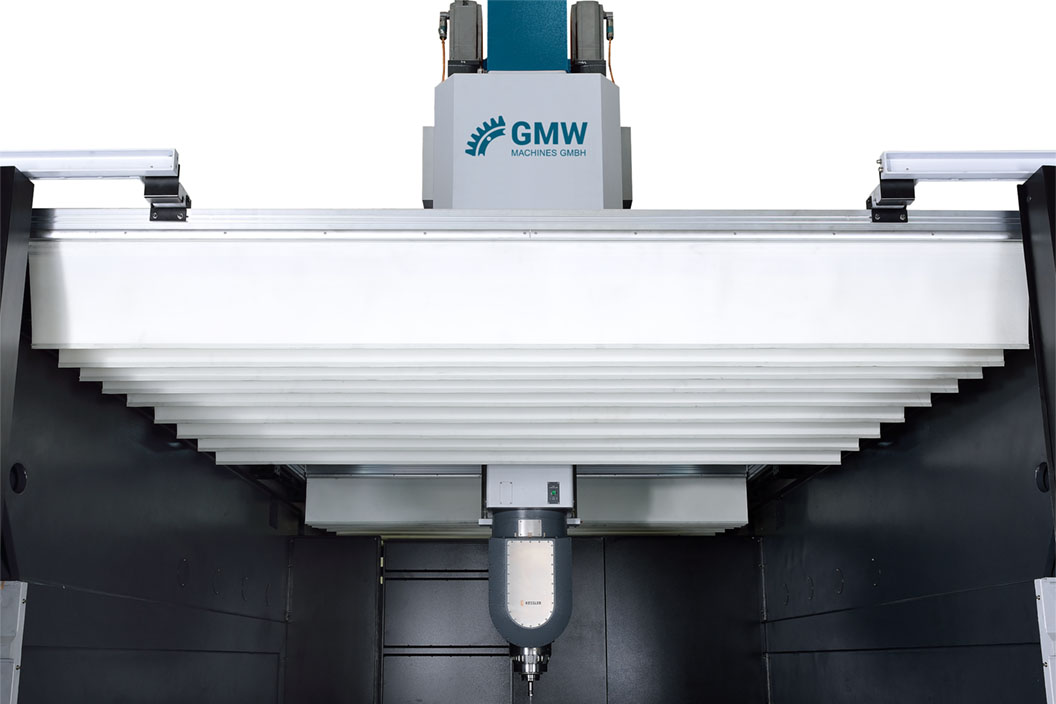

The cross beam assembly with all machining axes (X/Y/Z/A/C) travels longitudinally on the two machine columns. The worktable is designed to customer specifications.
The cross beam assembly with all machining axes (X/Y/Z/A/C) travels longitudinally on the two machine columns. The worktable is designed to customer specifications.
Our control modules control all 5 axes with high efficiency (Option: Siemens 840DSL or Heidenhain iTNC 530).

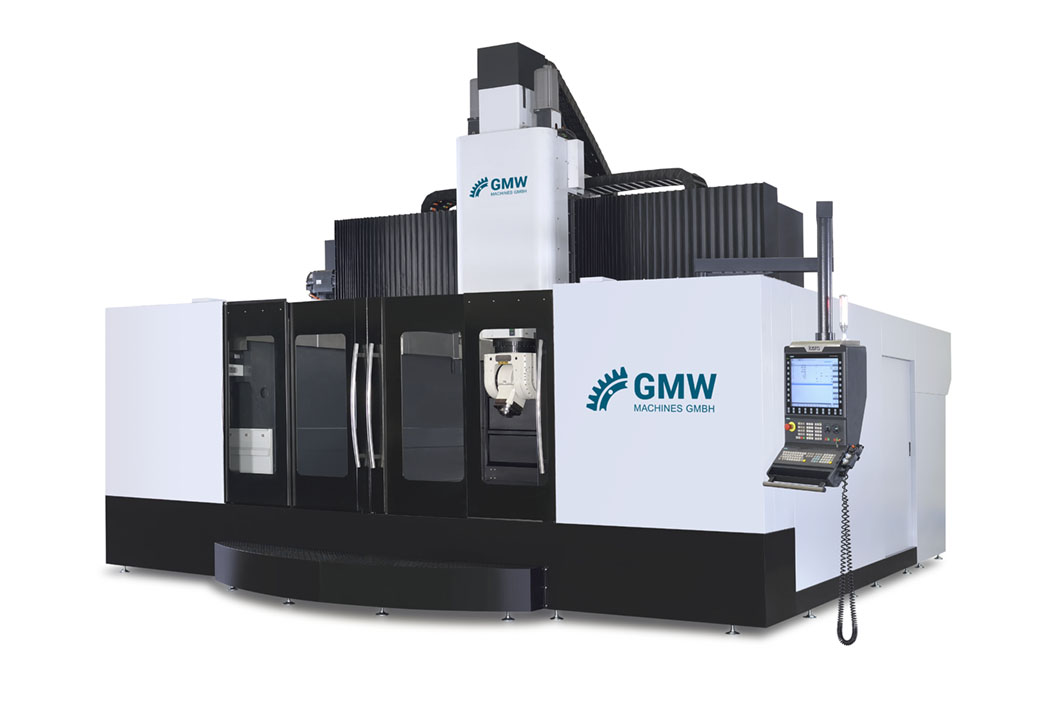

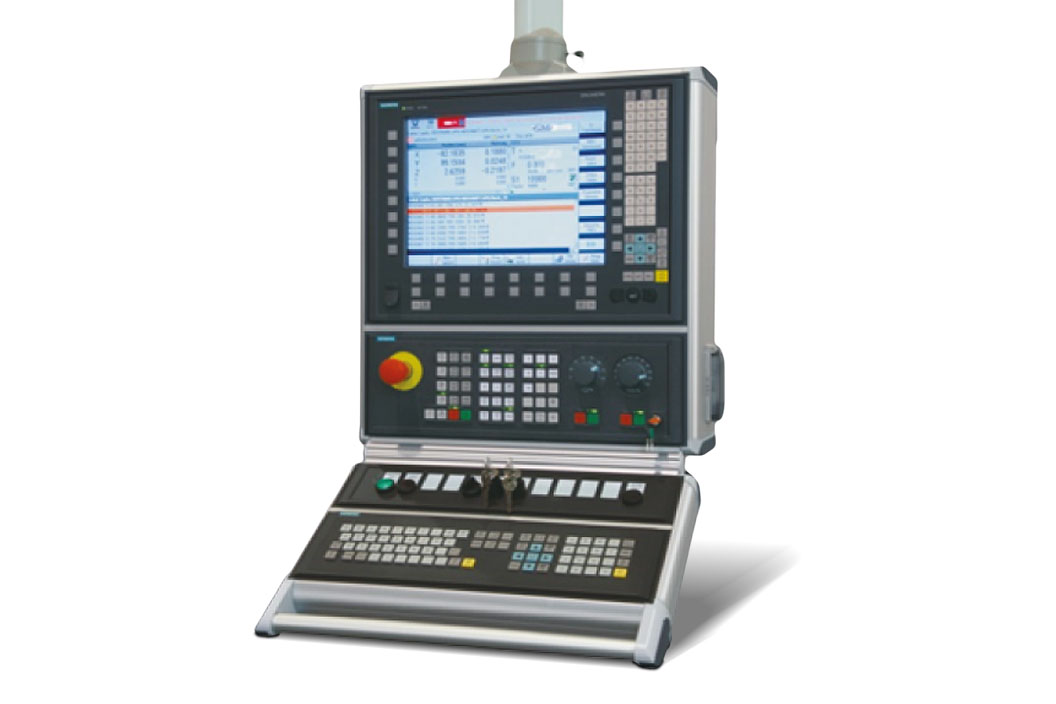

Operating arm for control panel, with weight compensation.
The automatic tool changer and milling head changer are located at the rear of the machine in order to keep the changing distances short and to avoid blocking installation spaces.
The worktable, as a solid cast plate, can be of any size and accommodate high workpiece weights.

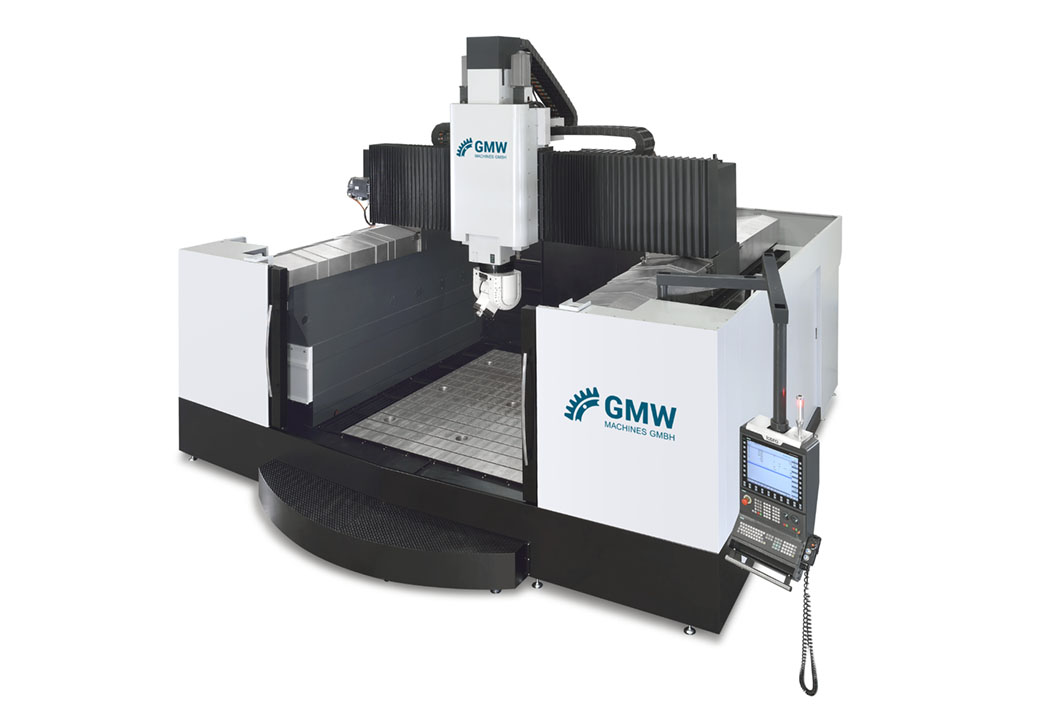

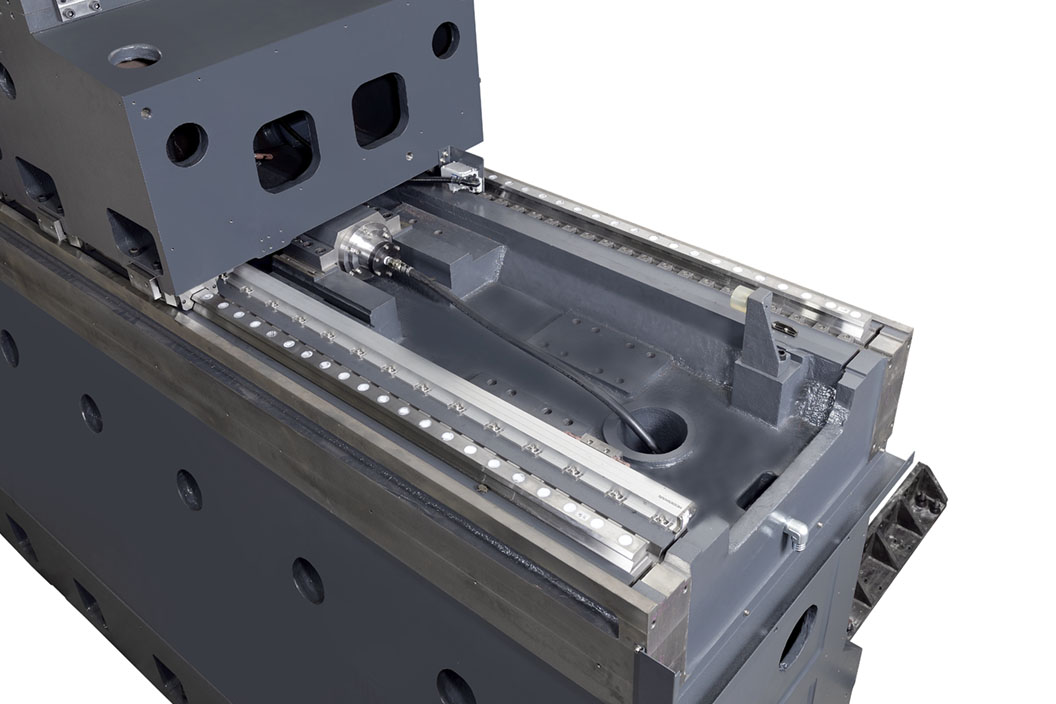

The stand construction as one component enables the absorption of large machining forces with the highest possible stability.
Technical Data | GKG5A-2717 | GKG5A-3222 | GKG5A-6040 | GKG5A-6050 | GKG5A-6060 |
---|---|---|---|---|---|
Travel | |||||
X-axis (Left / Right) [mm] | 2.700 | 3.200 | 6.000 | 6.000 | 6.000 |
Y-axis (Front / Back) [mm] | 1.700 | 2.200 | 4.000 | 5.000 | 6.000 |
Z-axis (Up / Down) [mm] | 900 (1.100) | 900 (1.100) | 1.100 (1.300 / 1.500) | 1.100 (1.300 / 1.500) | 1.100 (1.300 / 1.500) |
Distance betw. spindle-table [mm] | 200 – 1.100 | 200 – 1.100 | 200 – 1.300 (200-1.500 / 200-1.700) | 200 – 1.300 (200-1.500 / 200-1.700) | 200 – 1.300 (200-1.500 / 200-1.700) |
Distance betw. columns [mm] | 3.500 | 4.000 | 5.200 (Y Travel 4.000 + 1.200) | 6.200 (Y Travel 5.000 + 1.200) | 7.200 (Y Travel 6.000 + 1.200) |
Table size (X) [mm] | 2.600 | 3.100 | 6.000 | 6.000 | 8.000 |
Table size (Y) [mm] | 1.600 2.100 | 3.800 4.800 5.800 | 3.800 | 4.800 | 5.800 |
Max. Table load [t/m²] | 2,50 | 2,50 | 2,50 | 2,50 | 2,50 |
Dual-axis Head / A-Axis and C-Axis | |||||
Max. Speed | 12000 / 18000 / 24000 | 12000 / 18000 / 24000 | 12000 / 18000 / 24000 | 12000 / 18000 / 24000 | 12000 / 18000 / 24000 |
SWIVEL RANGE A-AXIS | ± 105 | ± 105 | ± 105 | ± 105 | ± 105 |
HEAD TURNING RANGE C- AXIS | ± 200 | ± 200 | ± 200 | ± 200 | ± 200 |
Tool holders | HSKA 63 or 100 | HSKA 63 or 100 | HSKA 63 or 100 | HSKA 63 or 100 | HSKA 63 or 100 |
Others | |||||
Measurment system | Heidenhain | Heidenhain | Heidenhain | Heidenhain | Heidenhain |
Controller | Siemens 840dsl / Heidenhain iTNC640 | Siemens 840dsl / Heidenhain iTNC640 | Siemens 840dsl / Heidenhain iTNC640 | Siemens 840dsl / Heidenhain iTNC640 | Siemens 840dsl / Heidenhain iTNC640 |

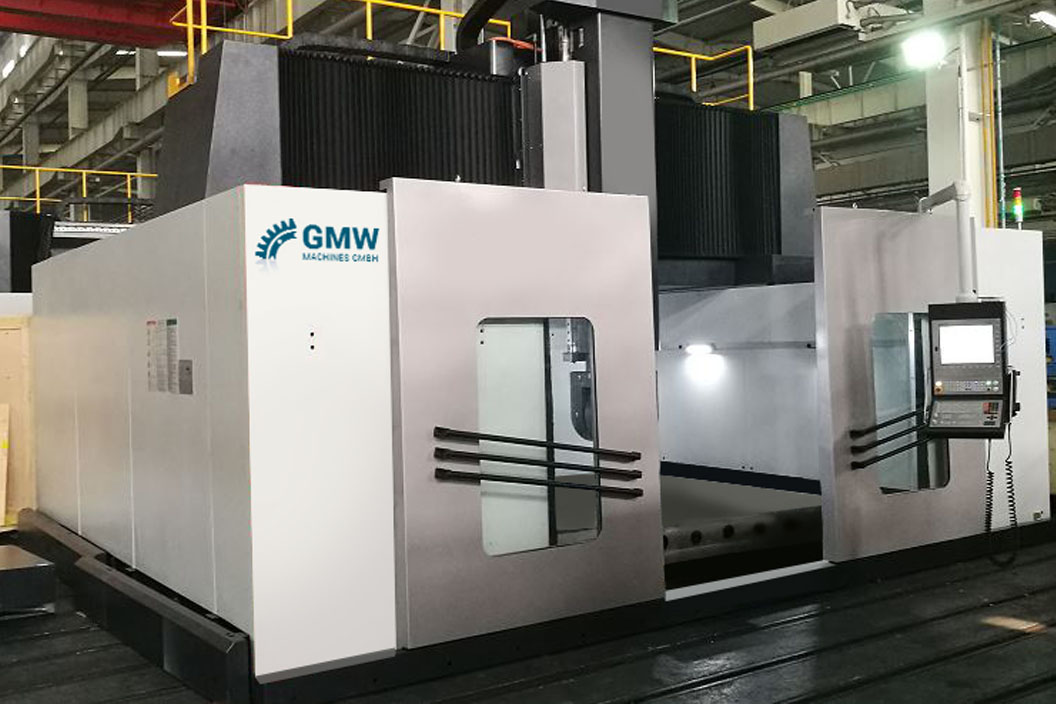

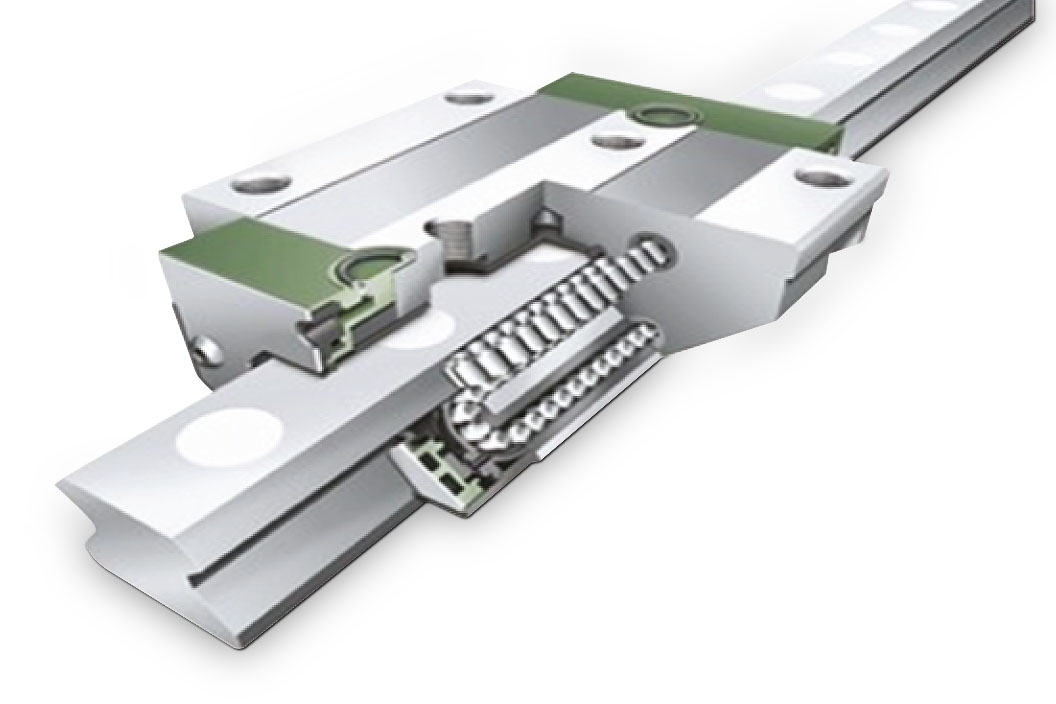

Guideway of X / Y / Z axis | Roller Linear Guideway | Roller Linear Guideway | Roller Linear Guideway | Roller Linear Guideway | Roller Linear Guideway |
Net Weight [t] | 55 | 61 | 120 | 140 | 160 |
Space [m] | 7,7 x 7,5 x 5,8 | 8,2 x 8 x 5,8 | 12,7 x 9,3 x 5,7 | 14,7 x 9,3 x 5,7 | 12,7 x 11,3 x 5,7 |
Our machines are delivered with Siemens control as standard. On request, we can also design the machines with Heidenhain and Fanuc controls. The machines are assembled and delivered according to the specifications.

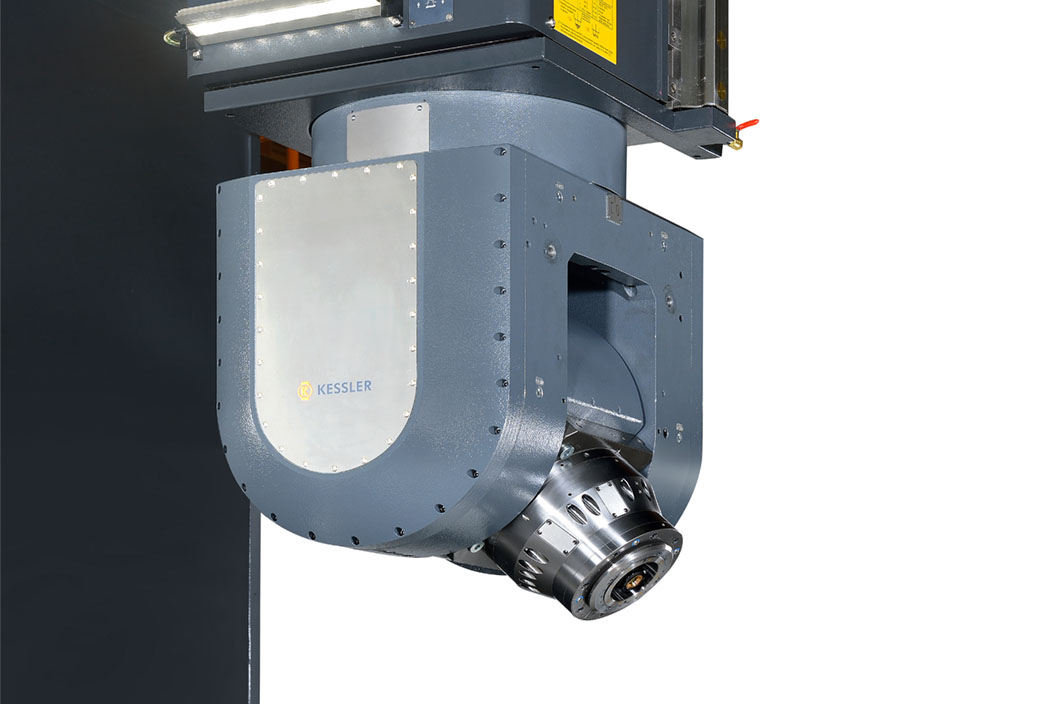

Optional accessories: 2 axis milling head as fork head of the brand Kessler GmbH, Cytech GmbH etc., lighter version 2AK-G3, with 12,000 rpm or 24.000 rpm, heavy version 2AK G63 with 12000 rpm or 24000 rpm.
Technical Data | GKG5A-8040 | GKG5A-8050 | GKG5A-8060 | GKG5A-10040 | GKG5A-10050 |
---|---|---|---|---|---|
Travel | |||||
X-axis (Left / Right) [mm] | 8.000 | 8.000 | 8.000 | 10.000 | 10.000 |
Y-axis (Front / Back) [mm] | 4.000 | 5.000 | 6.000 | 4.000 | 5.000 |
Z-axis (Up / Down) [mm] | 1.100 (1.300 / 1.500) | 1.100 (1.300 / 1.500) | 1.100 (1.300 / 1.500) | 1.100 (1.300 / 1.500) | 1.100 (1.300 / 1.500) |
Distance betw. spindle-table [mm] | 200 – 1.300 (200 – 1.500 / 200 – 1.700) | 200 – 1.300 (200 – 1.500 / 200 – 1.700) | 200 – 1.300 (200 – 1.500 / 200 – 1.700) | 200 – 1.300 (200 – 1.500 / 200 – 1.700) | 200-1.300 (200 – 1.500 / 200 – 1.700) |
Distance betw. columns [mm] | 5.200 (Y Travel 4000 + 1200) | 6200 (Y Travel 5000 + 1200) | 7200 (Y Travel 6000 + 1200) | 6.200 (Y Travel 5.000 + 1.200) | 7.200 (Y Travel 6.000 + 1.200) |
Table size (X) [mm] | 8.000 | 8.000 | 8.000 | 10.000 | 10.000 |
Table size (Y) [mm] | 3800 | 4.800 | 5.800 | 3800 | 5.800 |
Max. Table Load [t/m²] | 2,50 | 2,50 | 2,50 | 2,50 | 2,50 |
Dual-axis- Head / A-axis and C-axis | |||||
Max. speed | 12000 / 18000 / 24000 | 12000 / 18000 / 24000 | 12000 / 18000 / 24000 | 12000 / 18000 / 24000 | 12000 / 18000 / 24000 |
SWIVEL RANGE A-AXIS | ± 105 | ± 105 | ± 105 | ± 105 | ± 105 |
HEAD TURNING RANGE C- AXIS | ± 200 | ± 200 | ± 200 | ± 200 | ± 200 |
Tool holders | HSKA 63 oder 100 | HSKA 63 oder 100 | HSKA 63 oder 100 | HSKA 63 oder 100 | HSKA 63 oder 100 |
Others | |||||
Measurment system | Heidenhain | Heidenhain | Heidenhain | Heidenhain | Heidenhain |
Controller | Siemens 840dsl / Heidenhain iTNC640 | Siemens 840dsl / Heidenhain iTNC640 | Siemens 840dsl / Heidenhain iTNC640 | Siemens 840dsl / Heidenhain iTNC640 | Siemens 840dsl / Heidenhain iTNC640 |
Guideway of X / Y / Z- axis | Roller Linear Guideway | Roller Linear Guideway | Roller Linear Guideway | Roller Linear Guideway | Roller Linear Guideway |
Net weight [t] | 140 | 160 | 180 | 160 | 180 |
Space [m] | 14,7 x 9,3 x 5,7 | 14,7 x 10,3 x 5,7 | 14,7 x 11,3 x 5,7 | 16,7 x 9,3 x 5,7 | 16,7 x 10,3 x 5,7 |
Our machines are delivered with Siemens control as standard. On request, we can also design the machines with Heidenhain and Fanuc controls. The machines are assembled and delivered according to the specifications.
Optional accessories: 2 axis milling head as fork head of the brand Kessler GmbH, Cytech GmbH etc., lighter version 2AK-G3, with 12,000 rpm or 24.000 rpm, heavy version 2AK G63 with 12000 rpm or 24000 rpm.
Technical Data | GKG5A-10060 | GKG5A-14040 | GKG5A-14050 | GKG5A-14060 |
---|---|---|---|---|
Travel | ||||
X-axis (Left / Right) [mm] | 10.000 | 14.000 | 14.000 | 14.000 |
Y-axis (Front / Back) [mm] | 6.000 | 4.000 | 5.000 | 6.000 |
Z-axis (Up / Down) [mm] | 1.100 (1.300 / 1.500) | 1.100 (1.300 / 1.500) | 1.100 (1.300 / 1.500) | 1.100 (1.300 / 1.500) |
Distance betw. spindle-table [mm] | 200 – 1300 (200-1500 / 200-1700) | 200 – 1.300 (200-1.500 / 200-1.700) | 200 – 1.300 (200-1.500 / 200-1.700) | 200 – 1.300 (200-1.500 / 200-1.700) |
Distance betw. columns [mm] | 7200 (Y Travel 6000 + 1200) | 5200 (Y Travel 4000 + 1200) | 6200 (Y Travel 5000 + 1200) | 7200 (Y Travel 6000 + 1200) |
Table Size (X) [mm] | 10.000 | 14.000 | 14.000 | 14.000 |
Table Size (Y) [mm] | 5.800 | 4.800 | 4.800 | 3800 |
Max. Table load [t/m²] | 2,50 | 2,50 | 2,50 | 2,50 |
Dual-axis Head / A-axis and C-axis | ||||
Max. speed | 12000 / 18000 / 24000 | 12000 / 18000 / 24000 | 12000 / 18000 / 24000 | 12000 / 18000 / 24000 |
SWIVEL RANGE A-AXIS | ± 105 | ± 105 | ± 105 | ± 105 |
HEAD TURNING RANGE C-AXIS | ± 200 | ± 200 | ± 200 | ± 200 |
Tool holders | HSKA 63 oder 100 | HSKA 63 oder 100 | HSKA 63 oder 100 | HSKA 63 oder 100 |
Others | ||||
Measurement system | Heidenhain | Heidenhain | Heidenhain | Heidenhain |
Controller | Siemens 840dsl / Heidenhain iTNC640 | Siemens 840dsl / Heidenhain iTNC640 | Siemens 840dsl / Heidenhain iTNC640 | Siemens 840dsl / Heidenhain iTNC640 |
Guideway of X / Y / Z axis | Roller Linear Guideway | Roller Linear Guideway | Roller Linear Guideway | Roller Linear Guideway |
Net weight [t] | 200 | 200 | 220 | 240 |
Space [m] | 16,7 x 11,3 x 5,7 | 20,7 x 9,3 x 5,8 | 20,7 x 10,3 x 5,7 | 20,7 x 11,3 x 5,7 |
Our machines are delivered with Siemens control as standard. On request, we can also design the machines with Heidenhain and Fanuc controls. The machines are assembled and delivered according to the specifications.
Optional accessories: 2 axis milling head as fork head of the brand Kessler GmbH, Cytech GmbH etc., lighter version 2AK-G3, with 12,000 rpm or 24.000 rpm, heavy version 2AK G63 with 12000 rpm or 24000 rpm.
